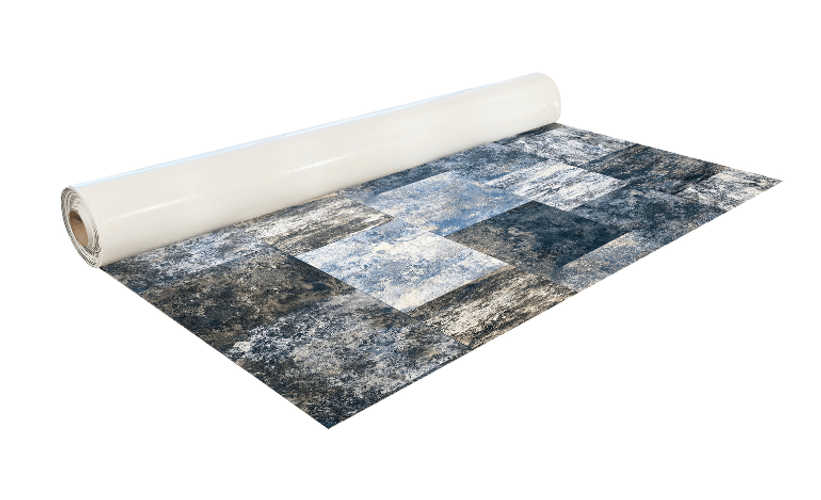

SOPREMAPOOL 3D is a PVC-P synthetic membrane for swimming pool reinforced with polyester mesh, nominal thickness 1,5 mm (Spirit Ceram) and 1,8 mm (Sensitive) with special “3D” slightly embossed decorative finishing. SOPREMAPOOL 3D was created with the specific objective of replicating the touch and aesthetics of mosaics and natural materials


  • Attractive and aesthetic
  • Easy and quick installation
  • Sensory experience
  • Varnish impregnation in all 4 layers
  • Varnish coating
  • Exclusive designs
  • Multiple designs

Membranes manufactured by impregnation with high quality raw materials (resins, plasticizers, stabilizers and pigments).

They are made up of 4 layers with different and complementary formulations, introducing between the second and third layers, perfectly centered, a polyester mesh whose function is to reinforce.

This reinforcement provides the membrane with great tensile strength and high dimensional stability.

The exclusive varnish integrated in the 4 layers of all our SOPREMAPOOL membranes, provides excellent durability and resistance to color, chlorine, stains and microorganisms.

In addition, it contains a varnished coating in the last layer for superior protection against UV rays.

Manufactured with double varnish (in the mass and on the surface) for maximum protection, by cast process according to European standard EN 15836-2 (2010).

SOPREMAPOOL 3D has been tasted for slip prevention according to the European standard EN 13451-1 (according to annex B of EN 15836-2) and DIN 51097 (1992).


1.8mm Sensitive nominal thickness: White, Grey, Black, Sand, Bali, Bali Sand, Bali XL and Wood.

Spirit Ceram 1.5 mm nominal thickness: Grey and Blue.


  • For new or renovation of existing swimming pools.
  • On any kind of support concrete, cement, steel prefab panels.
  • On incompatible support (resins, polystyrene panels etc.), provide the positioning of a special Soprema separation geotextile.
  • The pool water temperature must never exceed 32°C.


12 years of waterproofing.
3 years of antibacterial stains.


For SOPREMAPOOL 3D it is recommended to use the welding edge-edge method with Leister-type hot air devices. However, you can use the overlay method while respecting the current installation regulations. Clean and dry membrane edges are essential for successful welding operations.


Do not use aggressive products to clean SOPREMAPOOL 3D, they may damage the liner and remove the surface decorative finishing.

It is advisable to use a soapy water solution and avoid using abrasive products.

Proper water treatment must be guaranteed for the entire service life of Sopremapool membrane. Check the “Maintenance instructions.”
